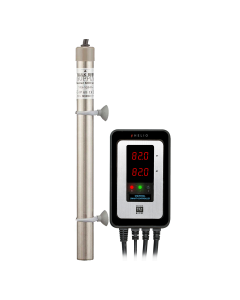

300W Titanium Aquarium Heater w/ Helio Controller

The BRS Titanium Heater & Helio Controller Bundle is a complete temperature control system that includes a virtually unbreakable titanium heating element paired with an Innovative Marine Helio Universal Aquarium Heater Controller.

The HELIO Smart Controller is a reliable midrange choice between commercial and hobby-grade heater controllers. It houses a circuit board processor that continually communicates with a titanium sensor to ensure consistent temperature accuracy. When a temperature difference is detected, it immediately cuts power to your heating device(s) and emits an audio alarm. The controller has two power lines to control two heating elements at once, up to a combined total of 1000 watts. If the heating element(s) of your choosing have their own controlling systems, you can create up to four independent temperature readings to provide safety in redundancy.



Features

• Precise Digital Readout
• Dual Heater Control
• Fully Submersible Titanium Heating Element
• Titanium Remote Temperature Sensor
• Suction Heater Mount
• Magnetic Sensor Mount
• Audio Alarm
• Control Up to 1000 Watts
• Quick Disconnect Cables for Easy Maintenance
• 3-Year Heating Element Warranty
• 5-Year Controller Warranty



Heater Wattage	Power Consumption	Heating Elements	Length/Diameter	Suggested Tank Size	Power Cord Length
100W	0.83A @ 120VAC	One	10.25″ / 1″	up to 40 Gallons	72″
200W	1.6A @ 120VAC	One	10.25″ / 1″	up to 75 Gallons	72″
300W	2.5A @ 120VAC	One	10.25″ / 1″	up to 100 Gallons	72″
600W	5A @ 120VAC	One	14.0″ / 1″	up to 200 Gallons	72″
1200W	10A @ 120VAC	Two	14.0″ / 1″ (each)	up to 350 Gallons	72″



Why Titanium?

Compared to glass heaters, titanium heaters are virtually unbreakable and will never shatter in your aquarium and can conduct heat through the body much quicker, ultimately making them more efficient. In most cases when a glass heater fails, the failure-prone seals will go bad allowing water into the heater body and can start to corrode the contents inside the heater causing water contamination and possible electric shock, or the body will just shatter leaving glass particles throughout your aquarium. Titanium heating elements take both of those risks and virtually eliminate them by having a shatterproof body along with welded end caps for a life-time of operation.



Controller Specifications

• Controller Dimensions: 3.13″L x 1.31″W x 5″H
• Remote Sensor Dimensions: 2.3″L x 0.31″D
• Factory Preset Temperature: 77°F
• Factory Preset Low Alarm: 74°F
• Factory Preset High Alarm: 80°F
• Temp Set Range: 59° – 95°F
• Low Alarm General Range: 57° – 93°F
• Low Alarm Minimum Range: -2°F from Set Temperature
• High Alarm General Range: 60° – 96°F
• High Alarm Minimum Range: +1°F from Set Temperature
• Accuracy: < ±1°F
• Resolution: 0.1°F
• Calibration Range: ±9°F
• Watt/Amp Draw: 100W 120V / 0.83amps
• Max. Load: 1000 Watts



What’s Included?

• 1x Innovative Marine Helio Universal Aquarium Heater Controller
• 1x 300W BRS Titanium Aquarium Heater Element
• 1x BRS Heater Suction Cup Mounting Kit
• 5-Year Heater Controller Warranty
• 3-Year Heater Element Warranty
