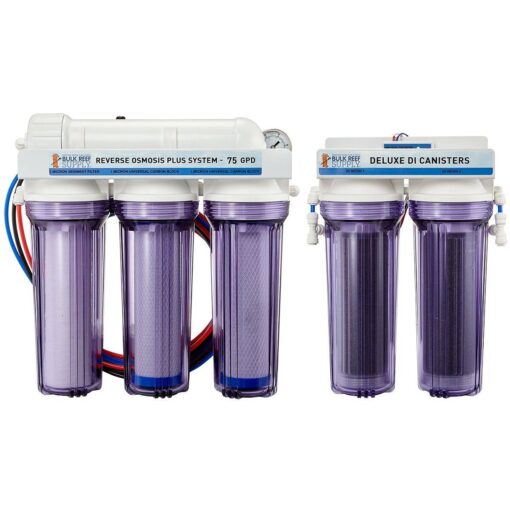

6 Stage Deluxe Plus 75 GPD RO/DI System

Makes up to 75 Gallons of RODI Water Per Day!

BRS 6 Stage RO/DI Systems are capable of handling almost any type of water your house may have and polishing it down to 0 TDS. Each system comes with dual Universal Carbon Blocks and Dual Color Changing DI stages, making it the perfect RO/DI system for almost any type of city water treatment process, including high levels of chlorine, and chloramines. Every BRS RODI system can be installed within minutes with the easy to use Mur-lok push-connect fittings that allow you to make leak-free connections. Bulk Reef Supply RO/DI systems only use the latest filters and components in Reverse Osmosis technology. We have designed our RO/DI units especially for reef tanks, but they can produce perfect water for other types of saltwater and freshwater aquariums too. If you have a well, or you are connected to city water we offer a variety of RO/DI systems that will fit your aquarium’s needs.



PLUS RO/DI System Included Upgrades

• HM Digital Inline Dual TDS Meter – Instantly know the purity of your water, before and after the deionization stage. The inline probes come pre-installed and with the simple push of a button, your waters TDS is displayed on the LDC monitor.
• Glycerin Filled Pressure Gauge – Reverse Osmosis membranes require a particular amount of pressure to operate efficiently, and using a pressure gauge will help ensure your system is performing correctly. Pressure Gauges also work as a great indicator of when sediment or carbon blocks start to become clogged.
• Membrane Flush Valve – Keep your RODI system running like new by flushing the membrane for a few minutes before and after each use. Membrane flushing helps remove any built-up mineral deposits from your membrane, that could harm performance, or even cause a complete clog.



6 Stage Premium RO/DI Features:

• Produce 0 TDS water
• Minimal waste water
• Dual DI Stages
• Includes Inline Ball Valve
• Multiple source water connections
• Mur-lok Push Connect dual EPDM O-Ring fittings
• 10 Ft Each of 1/4″ Blue, Red and Black Tubing
• Pre-installed NSF Certified Filters



All Bulk Reef Supply RO/DI Systems are covered by our Limited Lifetime Warranty.



4 Stage Value RO/DI Systems – Perfect for city water that is treated with low amounts of chlorine, or well water with very minimal contaminants. Four stage RODI systems are a great solution if you only connect your RODI system temporarily or have little space to dedicate to storing a RODI system.
5 Stage Premium RO/DI Systems – Our most popular systems handle common impurities found in well water along with most types of city water treated with chlorine including small amounts of chloramines.
6 Stage Deluxe RO/DI Systems – If you are not sure what is in your water, or it contains excessive amounts of TDS or hard to remove contaminants like chloramines, phosphates, nitrates, silicates, etc. The BRS 6 Stage systems are designed to effectively treat any water your home may have prior to using it in your aquarium. The Dual DI stage helps with the hard to remove ions like ammonia, phosphates, silicates, etc.
7 Stage Pro RO/DI Systems – Perfect for almost any water condition, but if you have contaminants that use excessive amounts of DI resin, the 7 Stage RODI system is the ideal choice. It uses cation and anion single bed resins that give you added control and cost savings over traditionally used mixed bed resins. Most water supplies tend to exhaust either the positively or negatively charged resin more quickly than the other, and by separating the standard mixed bed resin into single beds, you are no longer throwing away good deionization resin.



6 Stages of Filtration

Stage 1 – GE ROSave.Z 1 Micron Depth Sediment Filter

Stage 2 – BRS 1 Micron Universal Carbon Block

Stage 3 – BRS 1 Micron Universal Carbon Block

Stage 4 – Dow Filmtec Membrane

Stage 5 – Nuclear Grade Mixed Bed Color-Changing Deionization Resin

Stage 6 – Nuclear Grade Mixed Bed Color-Changing Deionization Resin



BRS RO/DI 6 Stage Deluxe Plus RO/DI System Comparison
	6 Stage 75 GPD Deluxe  Plus RO/DI System	6 Stage 100 GPD Deluxe Plus RO/DI System	6 Stage 150 GPD Water Saver Deluxe Plus RO/DI System	6 Stage 200 GPD Water Saver Deluxe Plus RO/DI System
Gallons Per Day	75	100	150	200
Sediment Filter	GE ROSave.Z 1 Micron Depth Sediment Filter	GE ROSave.Z 1 Micron Depth Sediment Filter	GE ROSave.Z 1 Micron Depth Sediment Filter	GE ROSave.Z 1 Micron Depth Sediment Filter
Carbon Blocks	Dual BRS 1 Micron Universal Carbon Blocks	Dual BRS 1 Micron Universal Carbon Blocks	Dual BRS 1 Micron Universal Carbon Blocks	Dual BRS 1 Micron Universal Carbon Blocks
Membrane	75 GPD Dow Filmtec Membrane*	100 GPD Dow Filmtec Membrane**	Dual 75 GPD Dow Filmtec Membranes*	Dual 100 GPD Dow Filmtec Membranes**
Deionization Resin	Dual Mixed Bed DI Stage with Refillable Cartridge	Dual Mixed Bed DI Stage with Refillable Cartridge	Dual Mixed Bed DI Stage with Refillable Cartridge	Dual Mixed Bed DI Stage with Refillable Cartridge
Waste to Product Water Ratio	3:1	3:1	1.5:1	1.5:1
Rejection Rate	99%	98%	99%	98%
Auto Shut Off Valve	✓	✓	✓	✓
Flow Restrictor	550 ml/min	800 ml/min	550 ml/min	800 ml/min
Canister Wrench	✓	✓	✓	✓
Included Source Water Connections	Chrome Faucet Diverter Valve (with adapters) Laundry Tub/Garden Hose Adapter EZ Angle Stop Adapter	Chrome Faucet Diverter Valve (with adapters) Laundry Tub/Garden Hose Adapter EZ Angle Stop Adapter	Chrome Faucet Diverter Valve (with adapters) Laundry Tub/Garden Hose Adapter EZ Angle Stop Adapter	Chrome Faucet Diverter Valve (with adapters) Laundry Tub/Garden Hose Adapter EZ Angle Stop Adapter
Included Drain Connection	1/4″ Drain Saddle Clamp	1/4″ Drain Saddle Clamp	1/4″ Drain Saddle Clamp	1/4″ Drain Saddle Clamp
HM Digital DM-1 TDS Meter	✓	✓	✓	✓
Membrane Flush Valve	✓	✓	✓	✓
Glycerin Filled Pressure Gauge	✓	✓	✓	✓
Inline Ball Valve	✓	✓	✓	✓
RO Body Dimensions	16″ x 6.25″ x 15.5″	16″ x 7″ x 15.5″	16″ x 7″ x 18″	16″ x 7″ x 18″
DI Canister Dimensions	10″ x 6.25″ x 14″	10″ x 6.25″ x 14″	10″ x 6.25″ x 14″	10″ x 6.25″ x 14″
Recommended Minimum Water Pressure	50-80 psi	50-80 psi	65-80 psi	65-80 psi
Tubing Size	1/4″ RO Tubing	1/4″ RO Tubing	1/4″ RO Tubing	1/4″ RO Tubing

Water pressure can be increased by adding a booster pump before your RO/DI system. Low pressure may cause the RODI system to produce excessive waste water. Pressure over 90 PSI may cause damage to the RO/DI units filters and components.



Need Replacement Filters? 6 Stage RO/DI Replacement Filter Kit







*DOW Filmtec 75 GPD Membranes have a 96% – 99% typical stabilized salt rejection rate that can be reproduced through the following conditions;

• Source Water Pressure – 50 PSI / Membrane (65 PSI for Water Saver systems)
• Source Water Temperature – 77°F
• Source Water TDS – 250ppm Softened Tap Water
• Recovery – 15%
• Minimum Salt Rejection – 96%

For more info on DOW Filmtec BW60-1812-75 Membrane – Click Here



**DOW Filmtec 100 GPD Membranes have a 96% – 98% typical stabilized salt rejection rate that can be reproduced through the following conditions;

• Source Water Pressure – 50 PSI / Membrane (65 PSI for Water Saver systems)
• Source Water Temperature – 77°F
• Source Water TDS – 250ppm Softened Tap Water
• Recovery – 15%
• Minimum Salt Rejection – 96%

For more info on DOW Filmtec TW30-1812-100HP Membrane – Click Here
