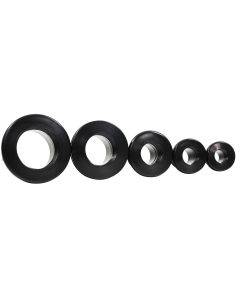

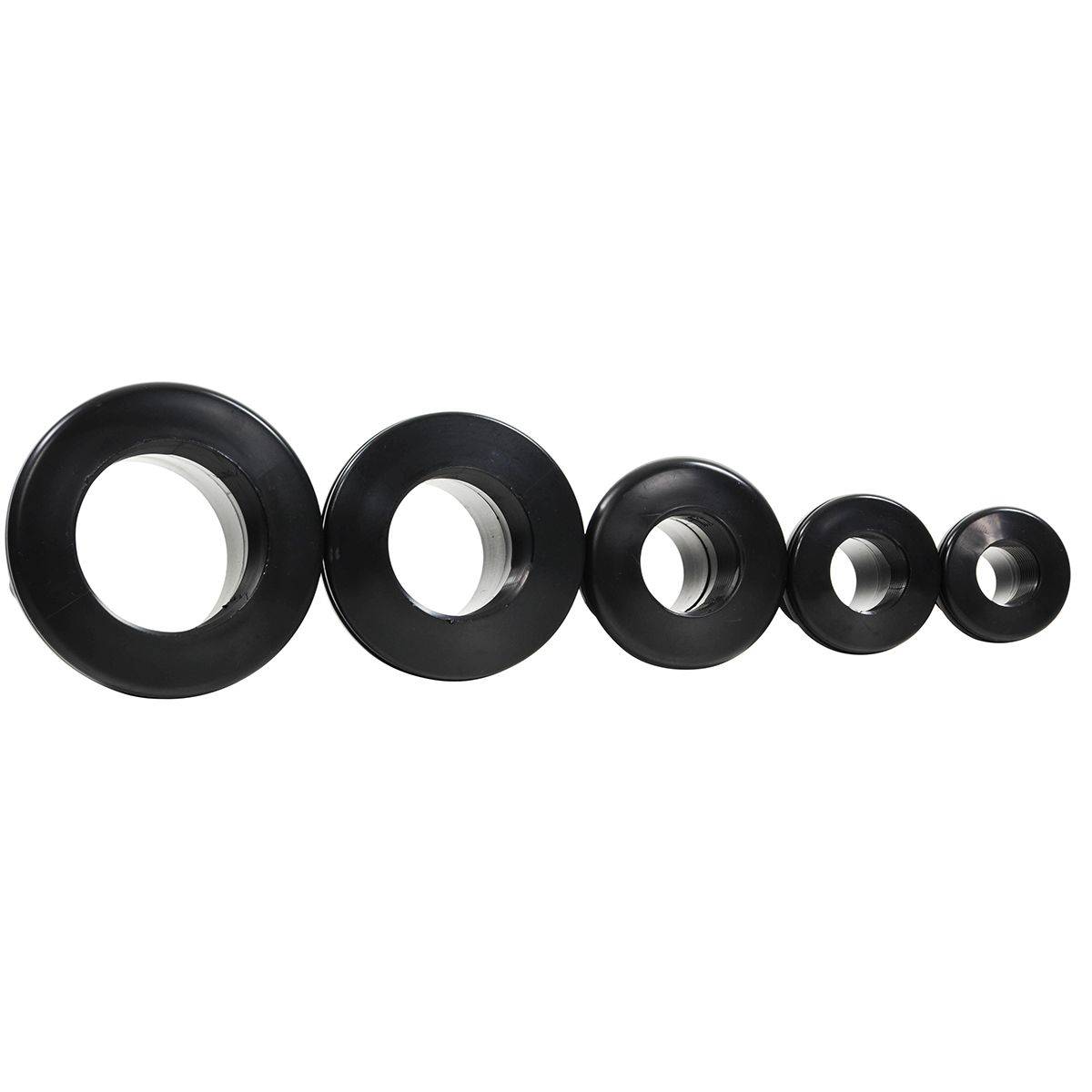

Bulkhead ABS Thread x Slip (Thread on the Flange/Head side)

When measuring for bulkheads, you will need a hole in your tank that is slightly larger than the “C” measurement for the corresponding bulkhead but no larger than the “A” measurement.

Example: If you have a 1.75″ diameter hole currently in your tank, then you would want to use the 1″ ABS Bulkhead.

1/2″ ABS Bulkhead Thread X Slip Dimensions (see diagram)
A – 44mm/1.72″
B – 43mm/ 1.69″
C – 27mm/1.06″
Installation Hole Size – Use our 30mm Diamond Coated Glass Drill Bit for DIY installation

3/4″ ABS Bulkhead Thread X Slip Dimensions (see diagram)
A – 52mm/2.04″
B – 50mm/1.98″
C – 34mm/1.33″
Installation Hole Size – Use our 35mm Diamond Coated Glass Drill Bit for DIY installation

1″ ABS Bulkhead Thread X Slip Dimensions (see diagram)
A – 68mm/2.67″
B – 63mm/2.48″
C – 42mm/1.65″
Installation Hole Size – Use our 45mm Diamond Coated Glass Drill Bit for DIY installation

1 1/4″ ABS Bulkhead Thread X Slip Dimensions (see diagram)
A – 77mm/3.05″
B – 71mm/2.80″
C – 51mm/2.00″
Installation Hole Size – Use our 53mm Diamond Coated Glass Drill Bit for DIY installation

1 1/2″ ABS Bulkhead Thread X Slip Dimensions (see diagram)
A – 86mm/3.38″
B – 73mm/2.87″
C – 59mm/2.32″
Installation Hole Size – Use our 60mm Diamond Coated Glass Drill Bit for DIY installation

2″ ABS Bulkhead Thread X Slip Dimensions (see diagram)
A – 98mm/3.85″
B – 73mm/2.87″
C – 72mm/2.83″
Installation Hole Size – Use our 75mm Diamond Coated Glass Drill Bit for DIY installation
