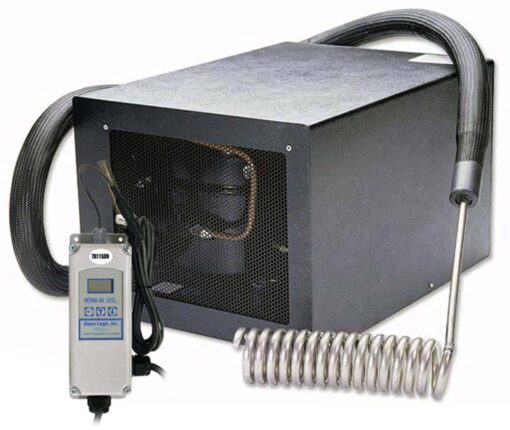

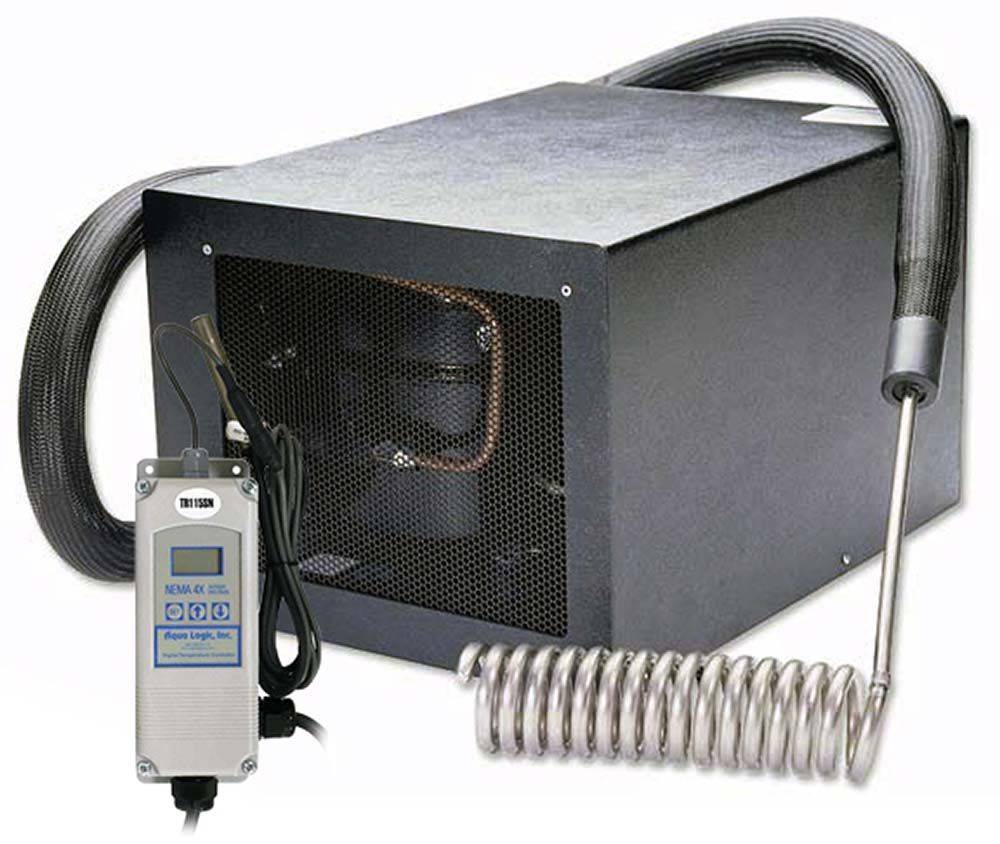

Cyclone Chiller 1/4 HP, CY-3 with Temperature Controller

The Cyclon’s unique titanium coil has 2/3 more surface area than any comparable aquarium water chiller, providing up to 25% higher efficiency rates while consuming less electricity. Performance and reliability have made the Cyclone the premier drop-in chiller for professional aquarists world wide. Features of the Cyclone include:

Features

• No Plumbing Required
• Remote Helix Titanium Coil
• Fresh or Saltwater Use
• Compact Design
• Quiet Operation
• Black ABS Cover
• Ozone Friendly Refrigerant (134A)
• Requires Temperature Controller
• Full Two Year Manufacturer’s Warranty

Specifications

• Model #: CY3
• Horsepower: 1/4
• BTU: 3080
• Volts: 115
• Amps: 5.4
• Min. Flow Past Coil (gpm): 8
• Coil Length: 9in
• Coil Diameter: 3in
• Riser Height: 7.5in
• Estimated Capacity: 125-180gal
• Dimensions: 12in x 15in x 11in

LCD Electronic Temperature Controller – This device is operable from a distance of up to 400 feet and has a superior accuracy for pinpoint temperature control of -30 °F to 220 °F. This digital display is easy to read and a pushbutton control allows you to choose selectable heating and cooling modes. It is not easy to find all these features in such an inexpensive monitor. A keypad lockout provides tamperproof protection. EEPROM memory retains control settings during power outage. This is an OEM product for some of the largest industrial chiller & heater manufacturers. Outperforms other thermostats which cost substantially more. Input power requirements 120 or 208/240 volts. Can control heater & chiller of up to 9.8 amps or approx. 1,000 watts! Dimensions: 6.52″ x 2.7″ x 2.48″. Made in the USA. One-year warranty.

• Temperature range 1 °F to 30 °F
• +/- 1° F Differential (i.e. can be set to turn on heat at 79 and off at 80; or turn chiller (or cooling fan) on at 85 and off at 65, etc.)
• Easy programming of setpoints, differential and heating/cooling mode using 3 front-mounted buttons. Select F or C scales at the push of a button.
• Pre-wired with power cord & remote sensor on 8-foot cable. Can be extended up to 400 feet using standard 22 gauge sensor wire (not included)

Note:

• 1/5-1/2hp are designed to operate in warm water applications only, maintaining temperatures between 65-85F.
• 1/2hp & up Chillers are made to order and take 1-2 weeks (excludes shipping time).
