Hydros Control X3 Aquarium Controller PRO Pack – Hydros

The Ultimate Aquarium Monitoring and Control System

The HYDROS Control X3 Pro Pack includes two Control devices, the Control XP8 and Control X3. Combine these Controls to create a secure and impressive set-up for both saltwater and freshwater aquariums. Connect up to two sensors such as temperature sensors, water level sensors, and leak detectors to the Control X3 and monitor pH or ORP through the available Probe Port. Connect up to eight pieces of aquarium equipment, including heaters, lights, pumps, skimmers, and more, to the 120V AC outlets on the Control XP8. Both devices can send alerts and notifications and connect up to 8 WiFi devices for added modular control on additional equipment like lights, pumps, feeders, and more by simply adding a HYDROS WiFi Power Strip or HYDROS Smart Plug (both sold separately). All HYDROS products are engineered, assembled, and supported in the USA.

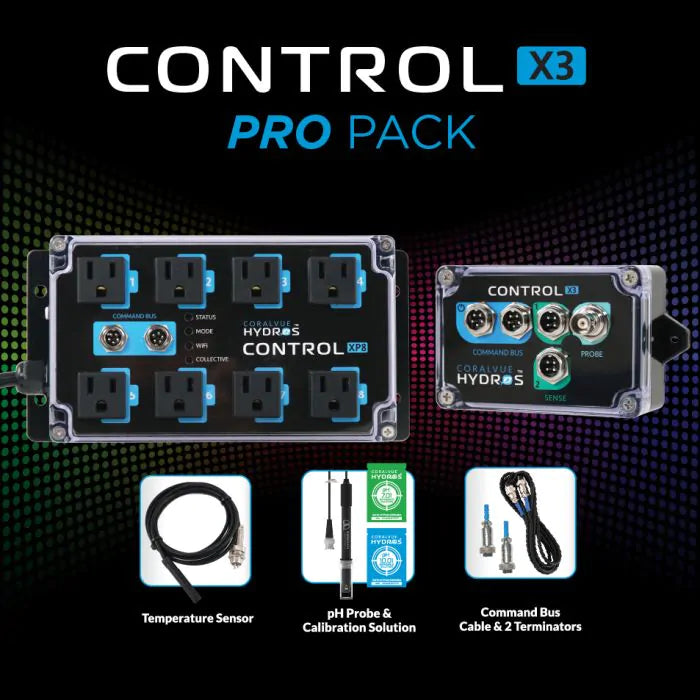

What’s Included in the X3 PRO Pack:

1x Control X3 Unit
1x Control XP8 Unit
1x Temperature Sensor
1x pH Probe & Calibration Solutions
1x 6ft Command Bus Cable with two Terminators
HYDROS App

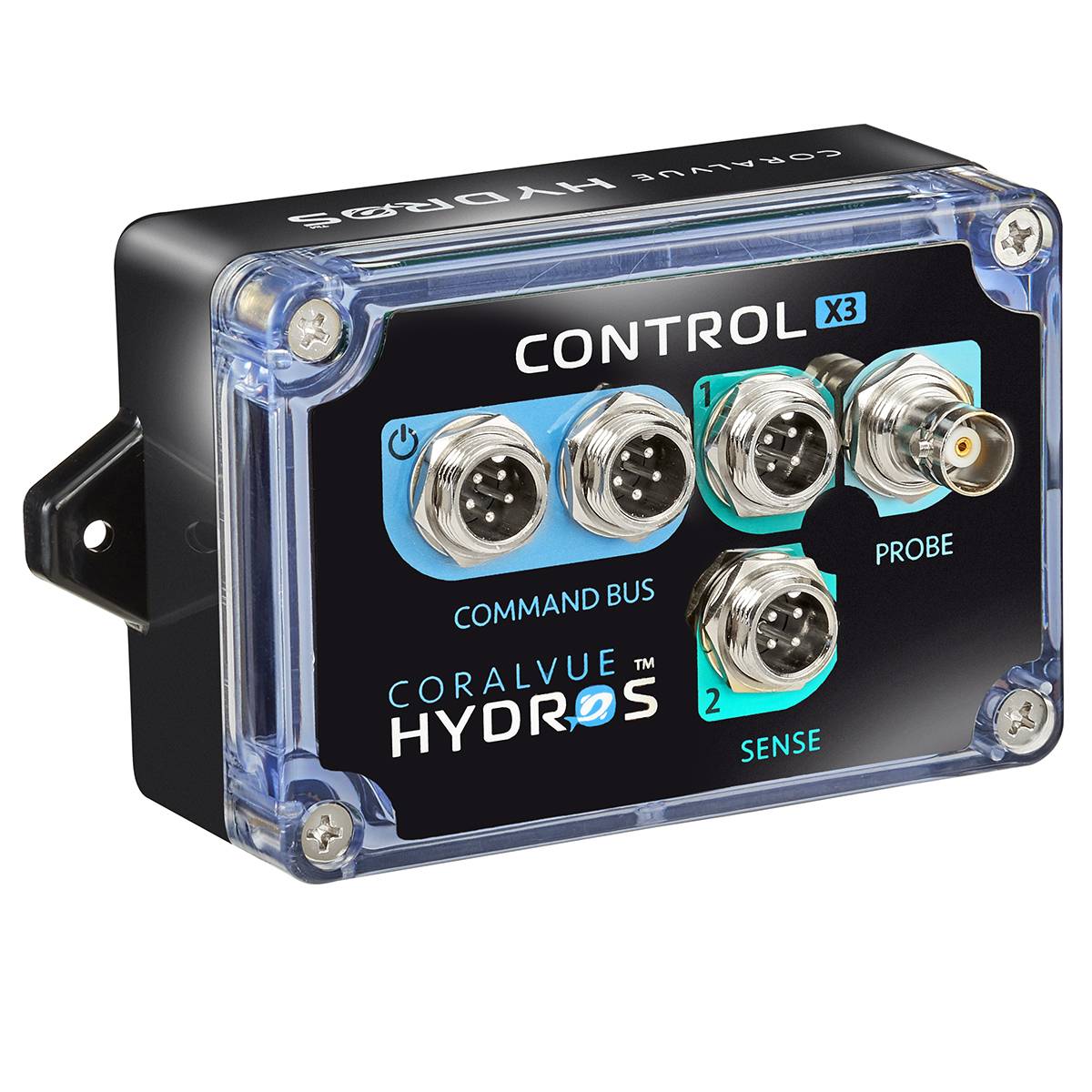

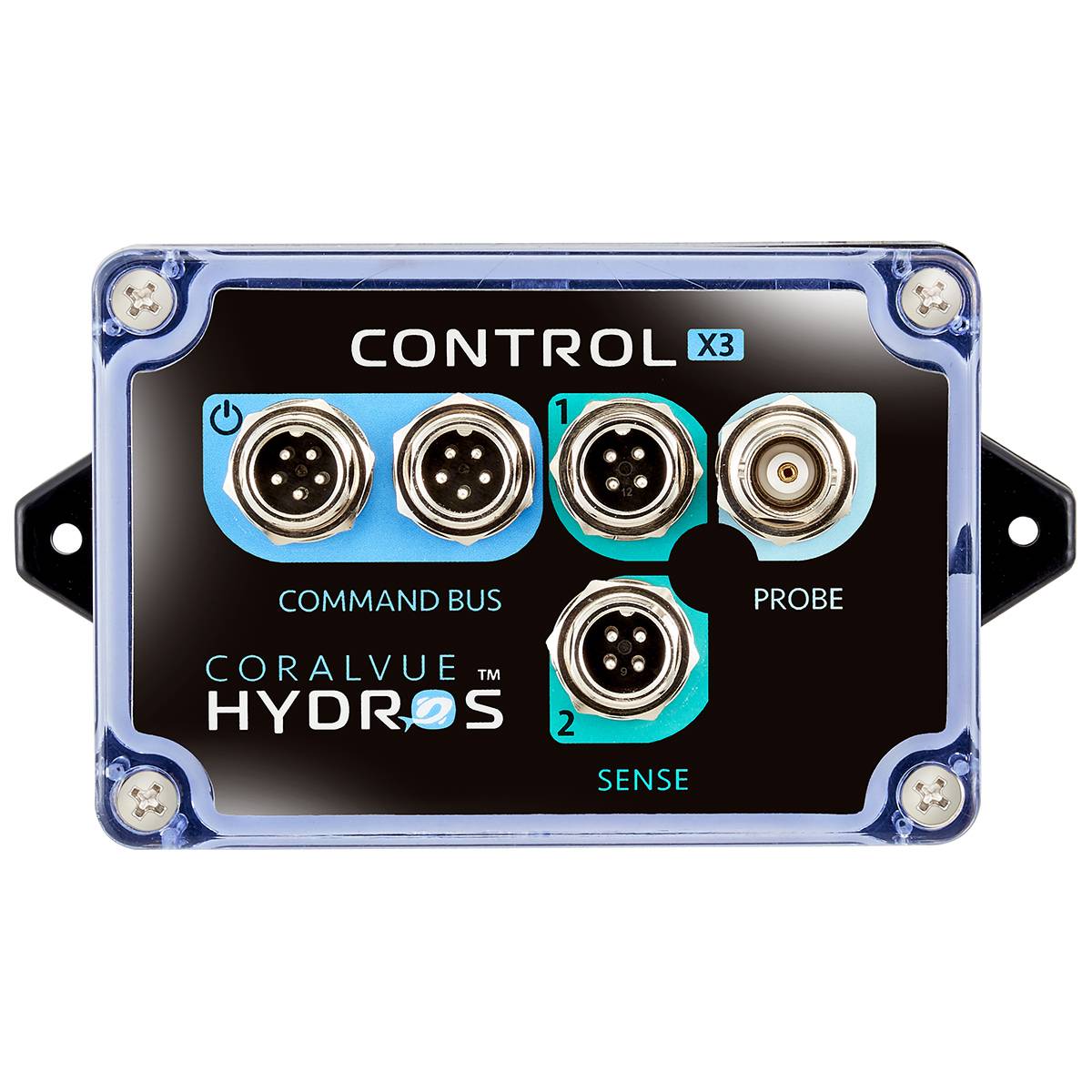

About Control X3
The HYDROS Control X3 can connect to two sensor devices including temperature sensors, water level sensors, and leak detectors. The device also includes a Probe Port for monitoring pH or ORP levels. Control X3 can send alerts and notifications through the HYDROS app and with the addition of the HYDROS WiFi Power Strip or HYDROS Smart Plug ( both sold separately) it can also control outlets for lights, pumps, feeders, and more. The Control X3 operates on a HYDROS Safety Net and it is rated IP65 to keep your equipment and aquatic life alive and thriving.

Sense Port (2 Available)
The Sense Port is a new concept in aquarium parameter measurement. HYDROS devices include several Sense Ports. A Sense Port is a generic input port that can accept data from numerous different types of sensors.

Sense Ports currently support:

Temperature probes
Optical level sensors (single and dual)
Capacitive non-contact liquid level sensors
Rope leak detectors
Point leak detectors
Flow rate sensors
Magnetic switches
Push-button switches

Probe Port (1 Available)
One of the most remarkable ports on the HYDROS Control X3 is the Probe Port. You can connect an ORP or a pH probe to the Probe Port but, this is no ordinary pH input! The circuitry is based on an ultra-high-quality input chip specifically designed for these types of probes. Each pH input provides digital galvanic isolation from the rest of the system. Galvanic isolation prevents interference with other accessories connected to the system like motors and pumps. Digital Galvanic isolation preserves the accuracy of the measurement by converting the signal to a digital domain before crossing the isolation threshold.

Command Bus (2 Available)
The HYDROS Command Bus is used to power the Control as well as communicate with other HYDROS devices for the ultimate failsafe.
Control X3 Dimensions (LxWxH): 5in x 2.7in x 2.3in

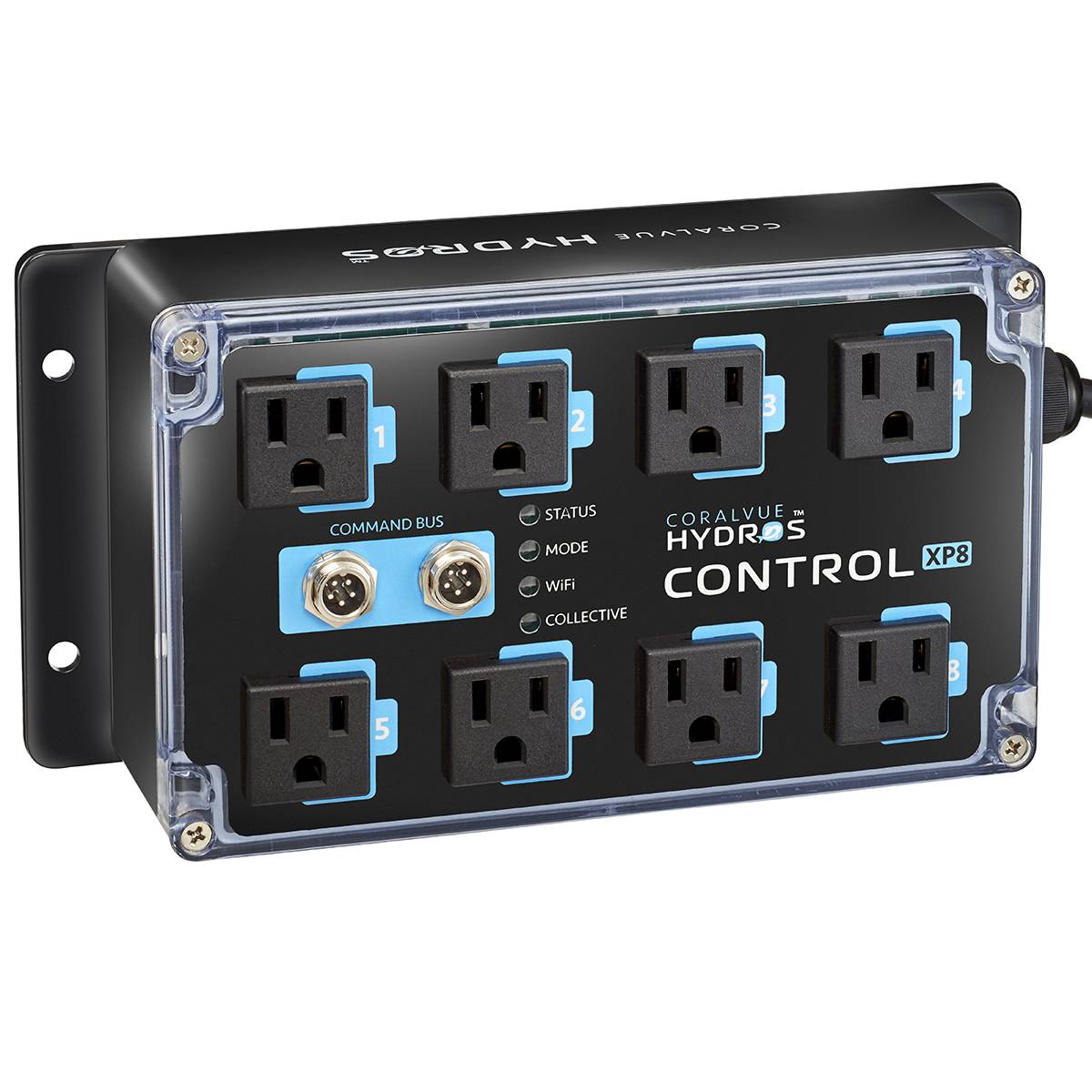

About Control XP8
The HYDROS Control XP8 is an eight 120V AC outlet energy bar and can control eight HYDROS WiFi devices with individual power monitory capabilities. Each of the individually controlled outlets is built into the HYDROS controller for the highest level of security. The two HYDROS Command Bus ports allow for a wired connection to any other HYDROS controllers to form a collective of all Controls in one. All HYDROS products Controls are engineered, assembled, and supported in the USA.

XP8 Features

The XP8 is a full brain that can share or take over the decision-making of a HYDROS collective. It is fully capable of taking over intelligent decisions based on the status of the collective and its inputs and outputs disconnected from the Collective.

Control up to 8 WiFi devices like fish feeders, dosing pumps, and even additional WiFi power strips

Command Bus port provides power add redundancy power to your HYDROS Collective

Designed to pass ETL/UL Certification

Universal voltage works with both 110 and 220V

60W Meanwell Power Supply

No noisy fans, the XP8 is completely passively cooled

Optical isolation between the power circuitry and the control circuitry. This provides safety failure, and it isolates the control circuitry to reduce noise.

Specifications
Max Per Relay: 8ATotal Max Amperage: 14A

8 – Controllable Outlets
Directly control 8 individual AC outlets with individual power monitoring capabilities to manage aquarium heaters, lighting, pumps protein skimmers, filters, and pretty much anything else.

2 – Command Bus
The HYDROS Command Bus is used to power the Control as well as communicate with other HYDROS devices for the ultimate failsafe.

Versatile and Expandable without Extra Modules
The HYDROS Control X3 and XP8 can be used as a standalone controller for saltwater aquariums, freshwater tanks, pond applications, or they can be added to other HYDROS Controls to build a more extensive system with NO single point of communication failure. Every HYDROS product is a smart device with its own CPU and scheduling capabilities.

What you can expect from your Control X3 and XP8 Control

Check on the health of your aquarium from anywhere in the world using the technologically advanced HYDROS cloud-based app
Ability to monitor your HYDROS device(s) locally through WiFi
Control X3 and XP8 feature a fast dual-core 32-bit processor
Internal health monitoring to report voltages, currents, CPU status, and the internal temperature of each device
HYDROS Command Bus connections to transfer data and power to devices

WARRANTY

CoralVue, Inc. and HYDROS hereby guarantee this product to be free from defects in material and workmanship for a period of:

1 Year

Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:

To the product only as long as it remains in the possession of the original purchaser.
To the product that has not been subject to accident, misuse or abuse.
To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
