Hydros WaveEngine Direct Drive Tunze 0-10V Pump Adapter – CoralVue

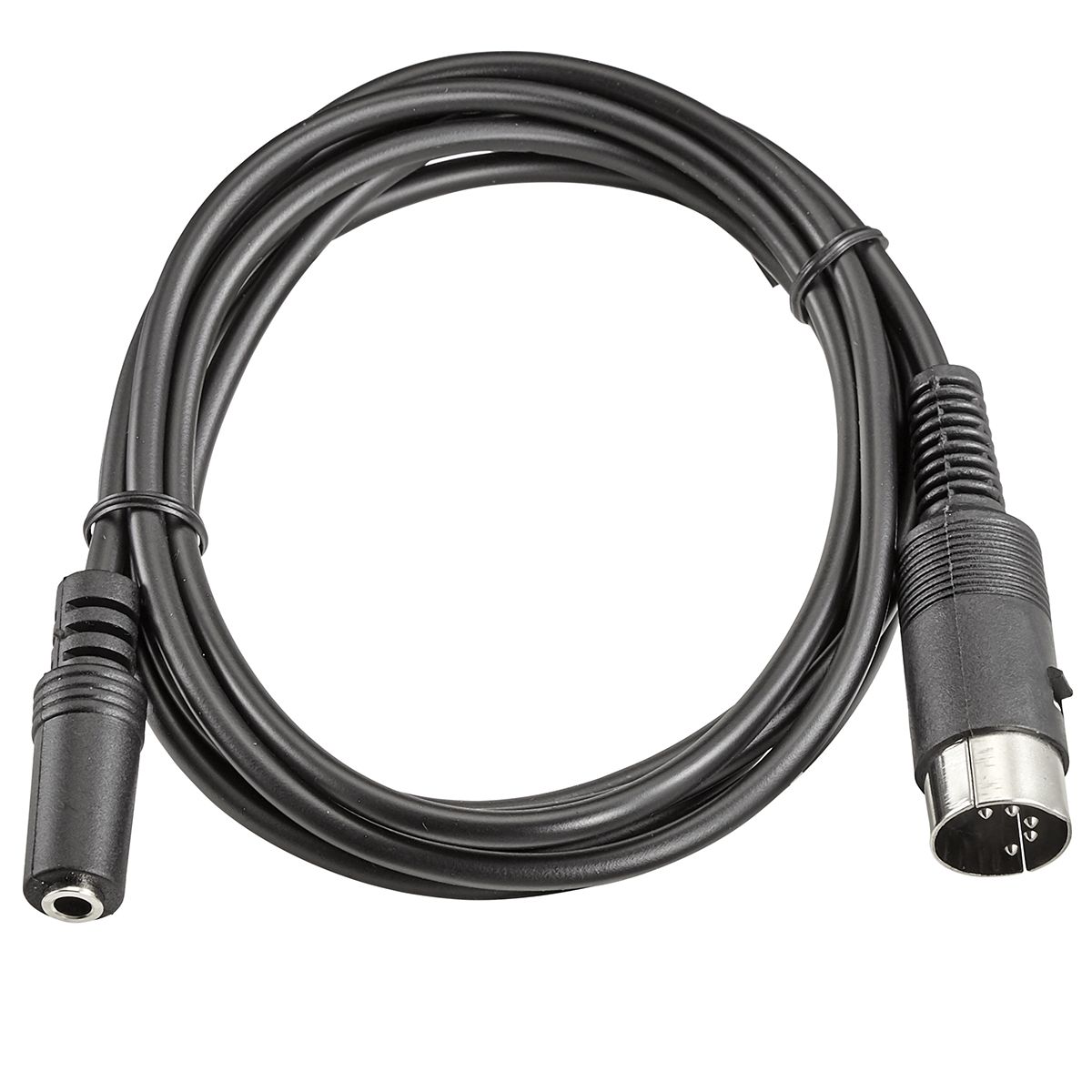

The Hydros WaveEngine 0-10V Tunze Adapter is required to control Tunze pumps with the WaveEngine. With it you can control any Tunze pump via variable speed INPUT with 0-10V Tunze Pump Adapter to take full advantage of all native flow modes and presets without complicated coding.Combine your Tunze pumps with pumps from other brands using the HYDROS WaveEngine for a complete water circulation solution!You will also need a HYDROS WaveEngine 0-10V Quad Cable for this application.With the Hydros Wave Engine you will be able to control up to four 0-10V Tunze pumps. To do this, you would need the following:1 x HYDROS WaveEngine 0-10V Quad Cable4 x HYDROS WaveEngine 0-10V Tunze Adapter**You don`t have to use four pumps. If you only had two pumps, you would only need 1 x Quad Cable and 2 x Tunze Adapters. We used four as our example since you can connect a maximum of four pumps with a Quad Cable.The way it works is as follows:Connect the Quad Cable to the WaveEngineConnect the Tunze Adapter to the Quad CableConnect the Tunze Adapter to your Tunze pump controllerNote: The reason an additional adapter is needed to control Tunze pumps with a WaveEngine is because Tunze pump controllers have a 9-pin jack rather than the more common 3.5 mm stereo jack.
