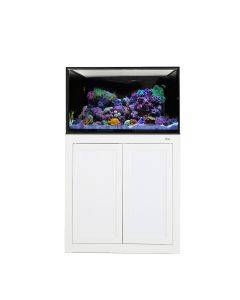

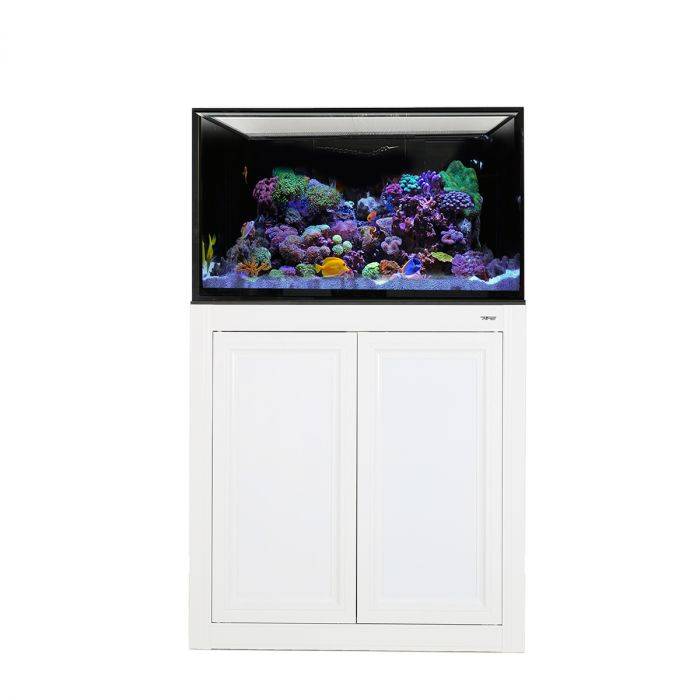

Nuvo INT 75 Gallon Complete Reef System – White



Innovative Marine now offers a complete aquarium system for those wishing to skip the tedious learning curve of building and plumbing an aquarium sump. Their all-in-one aquarium package solution includes the following:

• 75 Gallon INT Aquarium
• White APS Aquarium Stand
• Reef Filtration Series 27″ Long Acrylic Sump (RFS27)
• Mighty Jet XL DC Submersible Return Pump w/ Controller
• Complete Preassembled Plumbing Kit



The Aquarium

The INT’s internal overflow system possess an industry first Trapezoid Infinity Overflow, dual return LOC-LINE nozzles, and a custom “Bean Animal” style safety drain system. When crafting a premium aquarium no detail is ever overlooked or underachieved. Utilizing only the highest caliber components, the INT embraces Innovative Marine’s award-winning craftsmanship, diamond-edged ultra-thick high clarity low iron glass, laser cut acrylic weir and distinct black silicone lines forged from a bloodline of distinction. Completely Silent, efficient and fully customizable the Full-Size NUVO Aquariums was born for the next generation of products for the hobbyist.

• Diamond Edge Polishing
• Ultra Thick Low Iron Glass
• Flare Nozzle Loc-Line
• Bean-Animal Overflow
• Laser Cut Back Panel
• Pre-Drilled Holes
• Trapezoid Internal Overflow
• Pre-Assembled SafeScreen Mesh Screen Lid
• Pre-Installed Rubber Leveling Mat



The Sump

The Reef Filtration Series sump comes with all the bells and whistles– from dedicated compartements to adjustable baffles, silencing lids, water level indicators, cord management, dosing line fittings, and more. It’s constructed from reinforced, double-walled acrylic and finished with noise-reducing polycarbonate compartement lids. It features a triple redundancy drain system, ensuring additional safety and peace of mind. On both the front and side filtration compartment walls, you’ll find laser-etched indicators measuring water level. The filtration compartment itself can accomodate 4″ filter socks and comes stocked with filter media cups, including silencing lids and high-performance fiber ball media. The protein skimmer chamber features an adjustable water height baffle, as well as a noise-reducing lid with a 9″ diameter cutout to fit snugly around your skimmer. Additional touches include a LED light bracket specifically designed to hold the Chaetomax Refugium LED (sold separately), RODI fittings for attaching dosing lines, all-black adhesive cord holder for sleek cable management, and a dedicated vertical heater compartment.

• Primary Drain, Secondary Drain, and Emergency Drain design for triple redundancy and safety
• Laser etched water level indicators (both front and side views)
• Adjustable baffle wall
• Vertical heater compartment with cord management
• Polycarbonate noise-reducing lids
• Reinforced double-walled acrylic frame construction
• Includes many bells & whistles– filter media cups, filtration media, drain filter sponge, silencing plates, RODI / dosing line fittings, cord holders, refugium light bracket, etc.



The Pump

The MightyJet XL Submersible DC Return Pump is an excellent choice for aquariums with sump filtration systems. The MightyJet XL has a run-dry protection with 7 different speeds and a feed mode. Set the perfect flow rate for your tank with the included and easy-to-use controller.  Ultra quiet DC technology allows the pump to flow copious amounts of water while staying whisper quiet making the Innovative Marine MightyJet perfect for any room of the house.

• Ultra-Quiet DC Powered
• Adjustable w/ 7 Speeds
• Run Dry Protection
• Voltage Protection
• One-Touch Feed Mode
• Includes Barbed Adapters
• Easy To Use Controller



The Stand

The NUVO APS stand sets new standard in aquarium furniture. Aluminum has been a tried-and-true element for custom commercial stands due to its versatility, strength, and its lightweight nature. Innovative Marine brought that technology to the aquarium industry to create a truly singular aesthetic aquarium stand that is modular in construction, easy to set up, and resistant to corrosion and swelling in both fresh and marine environments.





Specifications

Tank

• Total Water Volume – 75 Gallons
• Tank Dimensions – 35.4″ L x 23.6″ W x 19.7″ H
• Glass Thickness – 15mm
• Drain System – 3-pipe (Bean Animal)
• Drain Bulkhead Sizes – 1″
• Return Bulkhead Size – 3/4″
• Return Type – Dual Flare Loc-Line
• Recommended Return Flow Rate – 1000-2000 GPH

Stand

• Outer Dimensions – 35.68″L x 23.50″W x 35.81″H
• Interior Dimensions – 32.37″ L x 19.31″ W x 33.75″ H
• Material – Annodized Aluminum
• Color – Pearl White
• Doors – 2x Front, 2x Side

Sump

• Volume Capacity – 39 Gallons
• Dimensions – 26.6″L x 18.7″W x 18.2″H
• Filtration – 3x Filter Media Cups with High Performance Fiber Ball Media
• Protein Skimmer Chamber – 16.3″L x 12.4″W
• Protein Skimmer Cover Plate Opening – 9″ Diameter
• Return Pump Chamber – 15.3″L x 6.5″W
• Plumbing –
  • 3x 1″ PVC Bulkheads
  • 1x 3/4″ PVC Bulkhead with Hose Barb Fitting
  • 1x Reversible 1/4″ to 1/2″ ATO Reurn Hose Barb

Pump

• Min Flow – 1062 GPH
• Max Flow – 2656 GPH
• Dimensions – 7″ L x 4.25″ W x 7″ H (without front cover), 8.5″ L x 4.25″ W x 7″ H (with front cover)
• Included Fittings – 3/4″, 1″, and 1-1/4″ barbed
• Power Consumption – 85w @ 24VDC



What’s Included?

1x Nuvo INT 75 Aquarium

• Pre-Assembled SafeScreen Mesh Screen Lid
• Pre-Installed Rubber Leveling Mat

1x Complete Pre-Assembled Plumbing Kit

1x White APS Stand

1x MightyJet XL Return Pump

• Pump Controller
• 1x Power Adapter
• 1x 3/4″ Barbed Adapter
• 1x 1″ Barbed Adapter
• 1x 1-1/4″ Barbed Adapter
• 1x Front Cover

1x RFS27 Acrylic Sump

• 3x 1″ Slip x Slip Bulkheads
• 1x 3/4″ Bulkhead (Hose Barb x Slip)
• 1/2″ to 1/4″ Hose Barb
• Drain filter sponge
• Drain silencing plates
• Filter media cups
• Fiber ball mechanical filtration media
• Noise Reducing Lid Covers for each compartment
• 4x RO/DI Push-fit fittings
• Refugium Chaetomax LED Light Bracket (light sold separately)
• 5x Black adhesive cord holders
