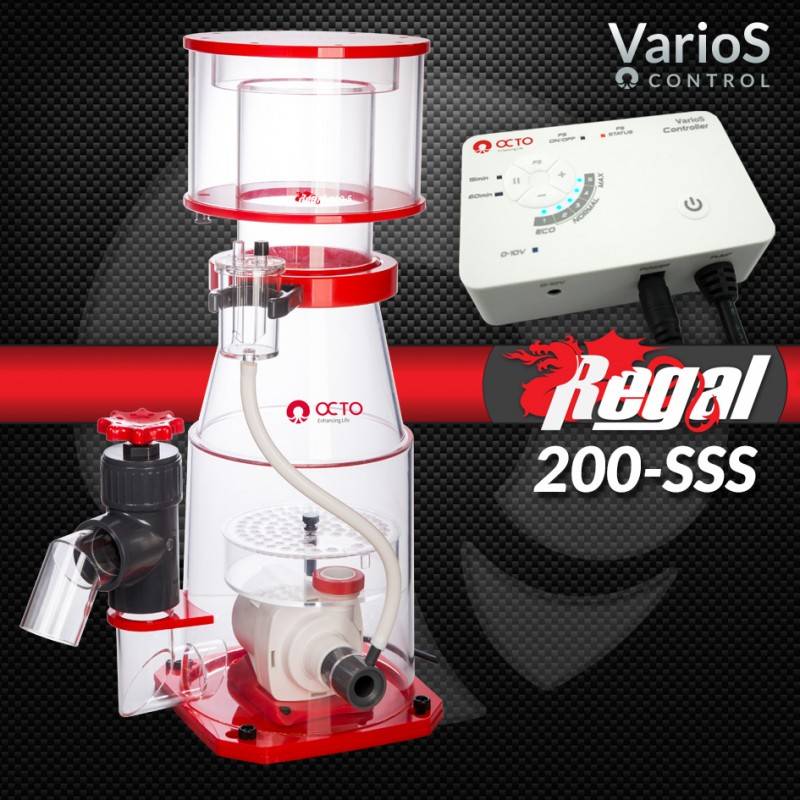

Regal 200SSS 8″ Space Saving Protein Skimmer (VarioS) – Reef Octopus

200-SSS Space Saving Protein Skimmer with Advanced Control
The new and innovative Reef Octopus Regal 200-SSS in-sump protein skimmer supplies powerful filtration for aquariums up to 400 gallons where sump space may be limited. The Reef Octopus Regal 200-SSS is constructed of high-quality cast acrylic that disassembles completely for cleaning. Its hybrid conical body naturally stabilizes and concentrates the organic rich foam as it rises.

This Regal skimmer is equipped with a new generation Reef Octopus controllable Direct Current VarioS 4S pinwheel skimmer pump which is the latest in variable speed flow technology and allows for refined control, enhanced performance and efficiency. The vast majority of skimmer pumps available to hobbyists are alternating current “AC” pumps (the type of power that comes out of your wall outlet). Direct current pumps have several key advantages over traditional AC pumps. Most notably, you can control the rotational speed of the motor, thus electronically control air and water flow rates into the skimmer. Now the user can have the skimmer process more or less water just by the push of a button!!!

Bioload Handling
The bioload of an aquarium refers to its ability to process waste in proportion to tank volume. Protein skimmers work best when properly matched with the bioload of the system.

(EXCLUDING SUMP)

Heavy
Medium
Light

200 gallons
300 gallons
400 gallons


Regal 200SSS Features

Small Footprint- Saves Sump Space

Solid Cast Acrylic Construction
High-Performance VarioS Skimmer Pump
Safe and Efficient 24V Power
Detachable Controller with Waterproof Union
Skimmer Disassembles for Easy Cleaning

Refined Control
In addition to allowing the pump to run at 5 different speeds, the new VarioS Controller takes the pump to a new level featuring:

A float switch connection, which allows you to connect a float switch (included in the box) to the controller. This is an added security feature that allows you to shut off the skimmer pump when your waste collector is full or shut off your water pump when your sump water has reached a high or low level. In all, you don’t need another module or controller to add a float switch to your system.
Two different pause/feed modes will shut off the pump for either 15 or 60-minute intervals. These come handy when you are feeding the tank or conducting regular maintenance such as a water change.
And the best feature of the VarioS controller is… a 0-10v input which will allow a 3rd party controller such as Neptune System’s APEX or Reef Angel to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump allowing you to create intricate programs using your system controller native language. This is unprecedented controllability on a skimmer or water pump. In essence, you can use your system controller as your DC pump controller!

The VarioS pump features a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds. The pump and controller are connected via a waterproof 3-conductor union. The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump’s output orientation in 90-degree intervals, meaning users can output water vertically (up or down) as well as horizontally.

Regal 200SSS Technical Specs
Body: 8inFootprint: 11.6in x 9.7inNeck Size: 5inTotal Height: 23.6inOutput Size: 50mm/1.5in

Recommended SumpWater Height: 7 – 8.5in

Pump Information

Reef Octopus VarioS 4S Controllable Pinwheel PumpPower Consumption: 25-40wattsDC Voltage: 24VAir Draw: 800-1500lph / 28-52SCFH*Max Water Draw: 422gph*Air and water results will vary depending on aquarium setup

WARRANTY

CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:

1 Year

Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:

To the product only as long as it remains in the possession of the original purchaser.
To the product that has not been subject to accident, misuse or abuse.
To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
